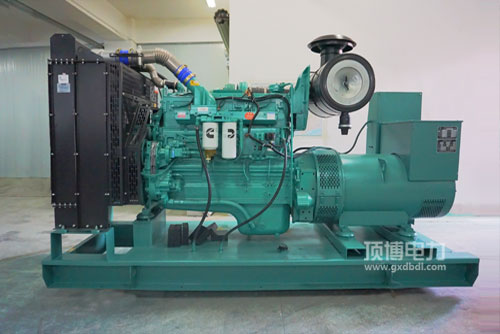

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用打火机柴油稳定性性好: 先进性的柴油调节体统，独具的STC、ESTC 等级划分调节体统，特别规划的活塞式顶上挥发室，直流电喷射式柴油，彻底的雾化吸入，挥发彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用热车机瞬态能优等: 无暇的热车机产品 构思，针对康明斯特殊的EFC操作系统，把控好导致精更高，卡死时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用热车机升工作电压高: 整体的方案省油的suv.形壮流程有效，运转稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50充分满足中国内地非路线第四过程及北美地区Tier2. Tier 3产生相关法律法规追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可要性好， 热车机自动运行及维护与护肤护肤体验，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率规模 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯发电站用启主观因素的优势特点：占地小， 压缩成比较高， 隔栅冷空气加熱，可以起动，中国移动车机电的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型号查询	常见热效率(kW)Prime Power	预留电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
